Thermal Laminating Roll Film Engineering & Global Industrial Supply
Welcome to Yixing Wangzhe Laminating Film Co., Ltd. (WONLAMI), a premier high-tech enterprise specializing in the research, co-extrusion processing, and global distribution of high-performance thermal laminating roll films. Founded in 1999, our enterprise leverages over 25 years of specialized extrusion composite experience to supply global B2B procurement managers, commercial print plant engineers, packaging project directors, and stationery distributors across more than 40 countries. As leading Thermal Laminating Roll Film Suppliers and Thermal Laminating Pouches Film Suppliers, we manufacture precision-engineered roll materials that combine exceptional optical transparency, high tensile strength, heat-sealing reliability, and superior surface protection.
Our manufacturing operations are supported by two modern intelligent production bases located in Yixing, Jiangsu Province, China, and Rayong, Thailand. Covering a total land area of 135 mu with over 90,000 square meters of standardized clean factory facilities, our dual-base production network operates 10 advanced extrusion coating and laminating lines, 29 high-speed automatic slitting machines, and 4 fully automated packaging systems. Operated by a dedicated workforce of over 300 skilled professionals, our annual production capacity exceeds 30,000 metric tons. As an established Thermal Laminating Roll Film company, we ensure fast order turnaround, tight micrometer tolerances, and factory-direct pricing for commercial roll-to-roll applications worldwide.
Polymer Co-Extrusion Architecture & Thermal Bonding Mechanics

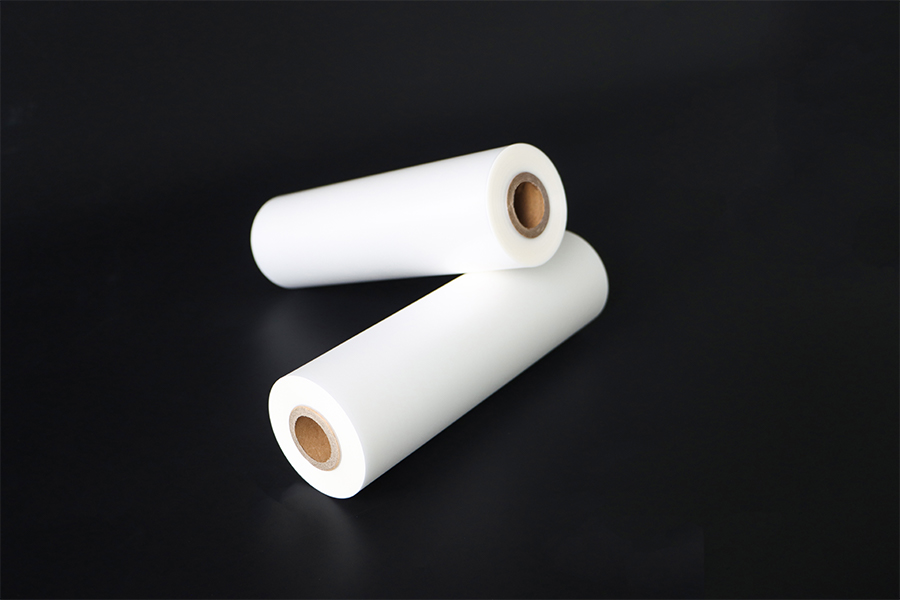

At WONLAMI, our core technical edge lies in our mastery of functional co-extrusion technology. Mainstream thermal laminating roll films are engineered as co-extruded "sandwich" composite structures comprising a premium Polyethylene Terephthalate (PET) or Biaxially Oriented Polypropylene (BOPP) base layer bonded seamlessly to an Ethylene Vinyl Acetate (EVA) hot-melt adhesive coating. For instance, our popular BOPP+EVA Roll Film and BOPET+EVA Roll Film demonstrate exceptional thermal stability during high-speed production line runs. Each material component fulfills a distinct physical and mechanical role:
- Outer Substrate Layer (PET / BOPP): Provides mechanical stiffness, tensile strength, heat resistance, optical clarity, and barrier protection against moisture, chemicals, oil stains, and physical abrasion.
- Inner Thermal Adhesive Layer (EVA): Features a controlled melt flow index (MFI) and low activation temperature (typically 110°C to 135°C), melting under heat and roller pressure to anchor deeply into paper fibers or synthetic printed media without leaving bubbles or water ripples.
In industrial web processing, the structural stiffness of a laminated product increases geometrically with total film thickness rather than linearly. Our production line controls the thickness ratio between the PET substrate and EVA adhesive down to micrometer tolerances. This precise material balance ensures strong edge seal adhesion, prevents post-cooling curl or wavy distortion, and maintains high dimensional stability across diverse ambient humidity and temperature conditions.
Product Series Portfolio & Application Alignment
To meet diverse processing machinery, surface aesthetics, and functional requirements, WONLAMI manufactures a comprehensive range of thermal laminating roll films for global commercial printing and packaging clients:
Standard Glossy Thermal Roll Film
Delivers ultra-high light transmittance (≥92%) and vivid color saturation. Designed for high-speed commercial book covers, brochures, posters, packaging boxes, and educational charts.

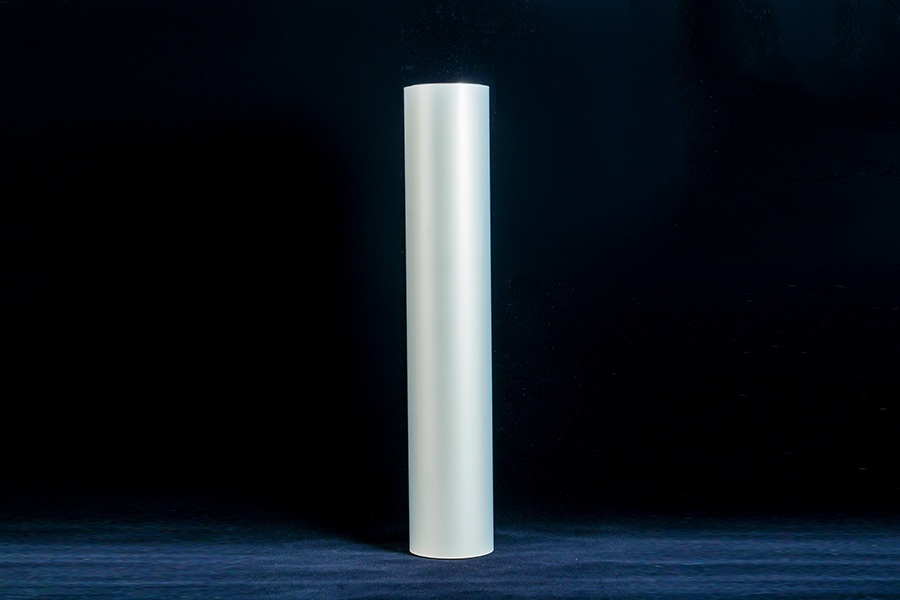

Explore our high-clarity Glossy Thermal Laminating Roll Film for brilliant visual enhancement.
Anti-Glare & Decorative Thermal Roll Film
Includes non-reflective matte surfaces and eye-catching holographic light diffraction effects. Ideal for luxury packaging boxes, book jackets, and premium brand presentation.

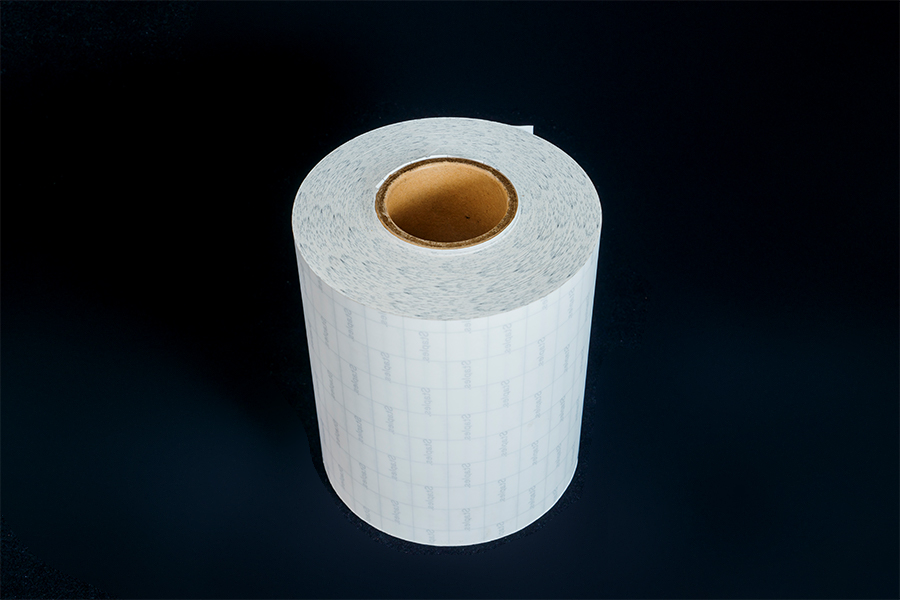

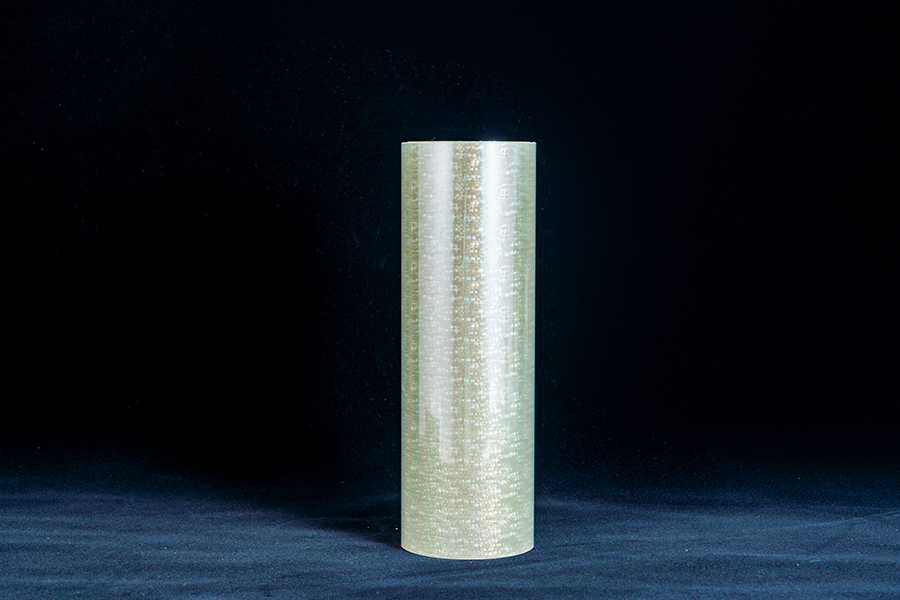

Examine specifications for Matte Laminating Roll and Laser Thermal Laminating Roll.
Functional & Specialty Thermal Roll Film
Specialty formulations including dry-erase whiteboard films, anti-glare matte finishes, and high-durability surface coatings for continuous industrial workflows.

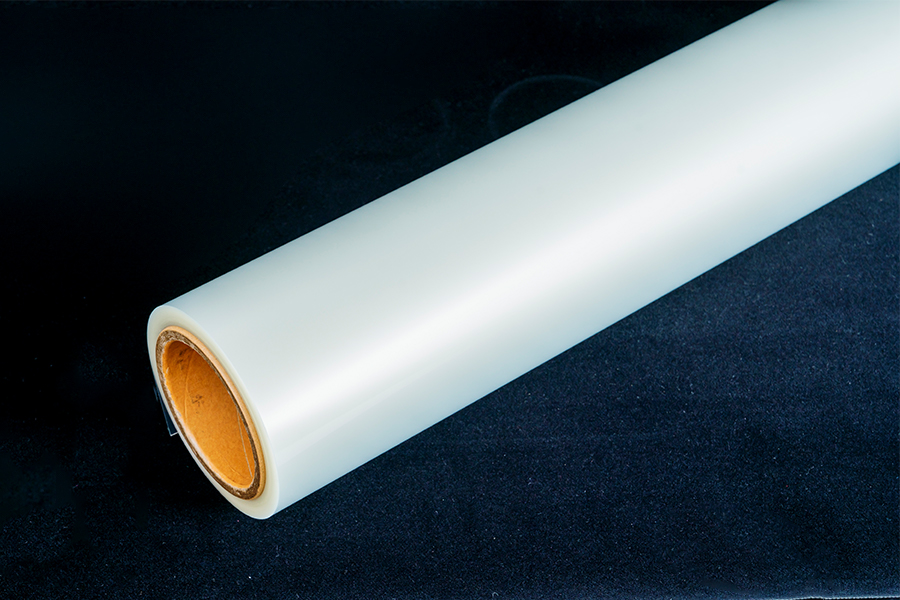

Discover performance metrics for Dry Erase Thermal Laminating Film.
For large-volume industrial processing lines requiring specialized web widths, custom core diameters (1-inch, 2-inch, or 3-inch), or unique roll lengths, our engineering facility produces high-grade custom Thermal Laminating Roll Film tailored precisely to client equipment specs.
Technical Specifications & Engineering Parameters
To assist plant engineers and procurement teams in selecting the correct roll specifications for their lamination machinery, the following structured tables detail our standard technical capabilities and operational windows:
Technical Parameter
Standard Range
Custom Option
Engineering Significance
Total Film Thickness
20mic – 175mic (0.8mil – 7.0mil)
Up to 250mic heavy duty
Determines structural rigidity, tear resistance, and mechanical protection level.
Substrate / EVA Ratio
12mic PET / 8mic EVA up to 125mic / 50mic
Custom ratio co-extrusion
Balances outer film stiffness with inner adhesive melt volume for bubble-free sealing.
Processing Temperature
110°C – 135°C (Standard Thermal)
90°C – 105°C (Low Temp Fast Seal)
Controls heat transfer requirements; protects heat-sensitive digital inks from thermal degradation.
Tensile Strength (MD/TD)
≥ 130 MPa (MD) / ≥ 120 MPa (TD)
High-tension oriented film
Prevents web stretching, tearing, or neck-in during high-speed roll unwinding.
Light Transmittance
≥ 92% (Glossy Finish)
Anti-glare Matte (Haze 60-80%)
Ensures true color fidelity, high optical contrast, and sharp printed image rendering.
Peel Bond Strength
≥ 5.0 N/15mm (Standard Paper)
≥ 8.0 N/15mm (Digital Heavy Ink)
Prevents delamination, edge lifting, or moisture ingress over long-term storage.
Thickness Grade
Target Product Application
Recommended Machine Speed
Expected Service Life
20mic – 32mic (Thin Roll)
Book covers, magazines, flexible packaging, commercial brochures
High Speed (30 – 60 m/min)
1 – 3 years indoor protection
75mic – 125mic (Medium Roll)
Educational posters, reference charts, office documents, maps
Medium Speed (15 – 30 m/min)
3 – 5 years extended durability
150mic – 250mic (Heavy Duty)
Restaurant menus, outdoor banners, industrial signs, rigid boards
Standard Speed (5 – 15 m/min)
5+ years heavy wear resistance
Dual-Base Intelligent Manufacturing & Supply Chain Resilience
To insulate international clients from regional freight bottlenecks, tariff fluctuations, and capacity constraints, WONLAMI operates an integrated dual-base manufacturing infrastructure across China and Thailand. Our ongoing hardware investment program has completed four phases of technological upgrading, establishing a robust production framework:
- Yixing Manufacturing Base (China): Serves as our primary innovation center and core extrusion hub. Outfitted with high-speed co-extrusion coating lines (including line numbers 7, 8, 9, and 10), high-precision roll slitters, and automatic packaging systems.
- Rayong Production Base (Thailand): Operationalized to expand global delivery capacity, offering duty-free advantages and flexible containerized shipments (achieving successful 5-container initial production export batches to international markets).
- Automated Slitting & Tension Control: Equipped with 29 automatic sheet slitting machines and 4 automatic packaging lines, guaranteeing clean roll edges, zero dust contamination, uniform winding tension, and strict dimensional tolerances (±0.5mm).
Our dedicated R&D division comprises 30 engineering professionals, over 45% of whom hold master's degrees or higher, with 80% bringing more than a decade of specialized polymer composite experience. Supported by collaborative university think-tank partnerships with Jiangnan University and Nanjing Tech University, we hold over 20 authorized patents and intellectual property rights, continuously driving material innovation and extrusion performance upgrades.
Quality Control Management & Global Certifications
Consistent quality stability is critical for high-speed continuous lamination operations. We enforce a comprehensive, zero-defect quality control protocol from raw material arrival to final container loading:
Polymer Resin Testing
100% inspection of incoming virgin PET resins and EVA compounds for melt flow index (MFI), moisture content, and particle purity.
Inline Laser Gauging
Continuous online thickness gauge monitoring across extrusion lines to ensure micrometer-level coating uniformity across full web widths.
Environmental Testing
Laboratory equipped with UV accelerated aging chambers, constant temp/humidity test rigs, and tensile peel testers to simulate climate extremes.
Our manufacturing facilities and products comply with major international quality and environmental management systems, holding official certifications for ISO 9001, ISO 14001, GRS (Global Recycled Standard), BSCI, REACH, RoHS, C-TPAT, and UL. Furthermore, our production bases feature rooftop distributed solar photovoltaic power installations to support sustainable, low-carbon manufacturing.
Machine Calibration, Web Tension & Maintenance Guidelines
To ensure flawless lamination results on automated roll laminators, plant operators should follow these technical calibration and maintenance practices:
- Roller Temperature Calibration: Set roller heating between 110°C and 135°C for standard thermal roll film. Thicker films (150mic+) or faster web line speeds require higher roller temperatures or extended preheating contact zones to fully activate the EVA adhesive.
- Nip Pressure Uniformity: Adjust pneumatic cylinder pressure evenly across heated nip rollers. Insufficient nip pressure causes micro-bubbles or cloudy patches, while excessive pressure forces molten EVA to squeeze out along roll edges.
- Unwind Tension & Static Elimination: Maintain consistent brake tension during unwind to prevent web sagging or diagonal creasing. Install inline anti-static bars to eliminate static charges that attract airborne dust particles.
- Proper Storage & Handling: Store thermal laminating film rolls horizontally or suspended on core plugs in a clean, climate-controlled warehouse (15°C–25°C, 40%–60% RH). Keep away from direct sunlight or ambient heat sources.
Custom Order Specification & Quotation Checklist
When submitting custom order inquiries, OEM requests, or bulk roll specifications to our engineering team, providing the following operational details allows us to formulate precise material specifications and competitive pricing:
Custom Roll Order Parameters:
- Target Application Substrate: Paper basis weight (gsm), printing technology (offset, digital toner, inkjet, flexo), or synthetic substrate type.
- Roll Dimensions: Film thickness (micrometer / mil), roll width (mm / inch), and roll length (m / feet / yard).
- Core Size & Surface Finish: Paper core inner diameter (1", 2", or 3" / 25mm, 58mm, 76mm); high-gloss clear or anti-glare matte finish.
- Special Functional Additives: Anti-static coating, UV barrier formulation, low-temperature fast seal EVA, or high-tack digital ink adhesion.
- Packaging & Logistics Preferences: Custom branded carton packaging, core plug style, palletization method, or shipping origin preference (China or Thailand base).
Frequently Asked Questions (FAQ)
Q1: What co-extrusion standards prevent air bubbles and edge delamination during high-speed lamination?
Bubbles and delamination stem from uneven EVA coating thickness or unstable melt flow index (MFI) in lower-grade films. WONLAMI utilizes advanced multi-layer co-extrusion technology to bond high-grade PET/BOPP substrates with premium EVA adhesive. Micrometer-level gauge control ensures uniform heat conduction across the web, allowing the EVA resin to melt smoothly and bond completely with paper fibers without air pockets or water ripples.
Q2: How does film thickness selection affect the bending rigidity and durability of laminated items?
In materials mechanics, structural bending stiffness scales geometrically with total film thickness. Thin films (20mic–32mic) provide essential surface protection for book covers and packaging. Medium thicknesses (75mic–125mic) add substantial stiffness for charts and posters, while heavy-duty grades (150mic+) deliver maximum rigidity and multi-year durability for high-wear applications like restaurant menus and industrial signage.
Q3: How do international buyers benefit from WONLAMI's dual-base manufacturing in China and Thailand?
Our dual-base infrastructure offers strategic supply chain flexibility and risk mitigation. Our Yixing facility handles advanced R&D and core extrusion, while our Thailand facility enables tariff-optimized, duty-free container shipments to North America, Europe, and Southeast Asia. Both facilities operate under identical ISO 9001 and ISO 14001 quality standards to ensure uniform product performance.
Q4: Can WONLAMI manufacture custom roll widths, core sizes, and specialty functional coatings?
Yes. We specialize in custom roll production, offering widths from 100mm to 1600mm, core sizes of 1", 2", or 3", and roll lengths tailored to client automated lamination equipment. Beyond standard gloss and matte, we formulate specialty films including dry-erase whiteboard laminates, anti-static films, laser holographic rolls, and digital high-bond adhesives.
Q5: What international quality and environmental certifications back WONLAMI's film products?
WONLAMI products strictly comply with global safety and environmental standard mandates. Our production systems carry official certifications for ISO 9001, ISO 14001, GRS (Global Recycled Standard), BSCI, REACH, RoHS, C-TPAT, and UL. Each production lot undergoes rigorous laboratory testing for peel strength, optical clarity, tensile resistance, and environmental aging prior to dispatch.
Partner with WONLAMI for High-Performance Thermal Roll Film
Whether you require standard gloss thermal rolls, specialized matte finishes, or custom co-extruded films, our engineering team is ready to provide technical specifications, free sample testing, and factory-direct volume quotes.
